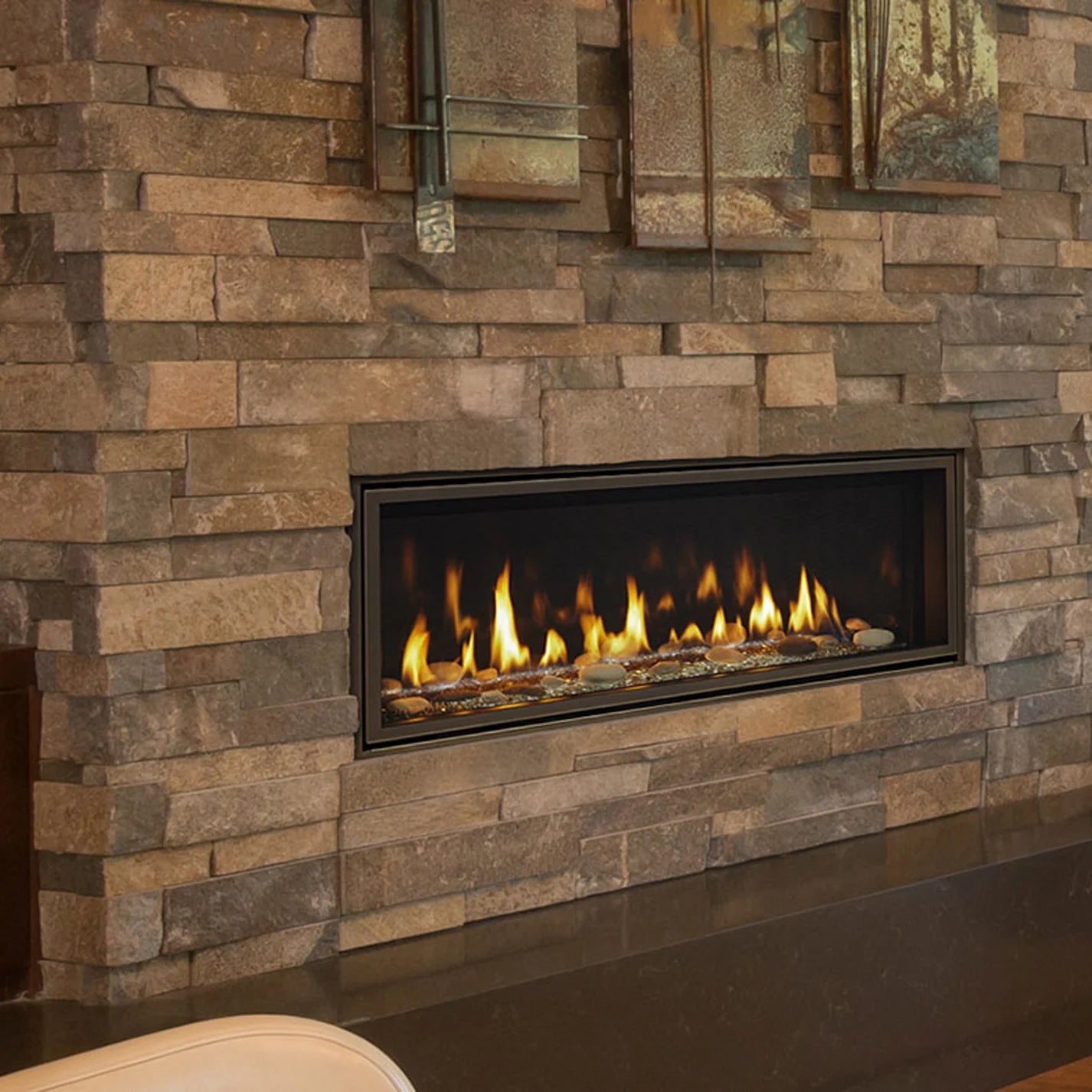

The Majestic Echelon II 48 Linear direct vent fireplace provides a beautiful gas fireplace option for your living room. Featuring active flames, impressive LED lighting effects, and a variety of customizable options, this fireplace is sure to become the focal point in any space.
The IntelliFire Touch intermittent-pilot ignition system on this unit allows for safe and simple operation, while compatibility with the IntelliFire App and included RC400 remote control offer enhanced convenience. This fireplace can be customized in a variety of ways to meet the needs of your home or project. To ensure safety and satisfactory performance, only use media intended for use in this fireplace.
Features
- Color: Black(ECHEL48IN, ECHEL48IL)

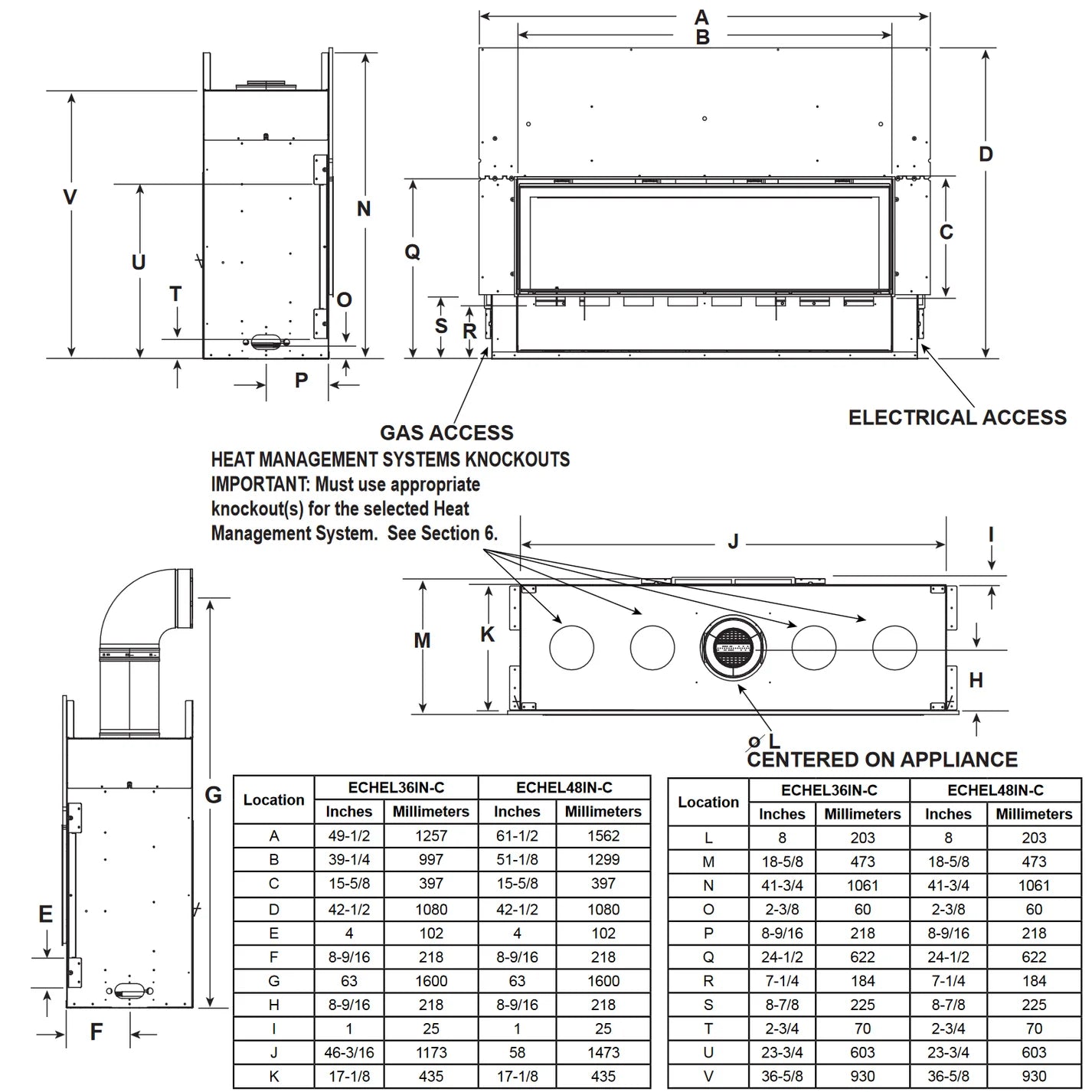

- Product Dimensions: 58" W x 41 3/4" H x 17 1/8" D(ECHEL48IN, ECHEL48IL)
- 44.6% AFUE tested
- 46% steady state efficiency
- Choose between natural or propane gas
- Intellifire touchscreen remote included
- Showcase the interior with glass illuminated by LED lights
- Optional heat distribution systems direct warmth to more areas of the home
- Customize the interior with panels, driftwood logs, natural stone, and glass fire bed options
- Passive heat enables TV or heat-sensitive materials to be mounted 12" above fireplace without mantel
SPECIFICATIONS
| Fuel Type: | Gas |
|---|
| Vent Type: | Direct-Vent |
|---|
| Vent Size: | 5x8 |
|---|
| Ignition Type: | Electronic |
|---|
| Installation Type: | Zero-Clearance |
|---|
| Style: | Linear |
|---|
| Vent Inner Diameter: | 5 Inches |
|---|
| Vent Outer Diameter: | 8 Inches |
|---|
| Weight: | 290 lbs. |
|---|
| Model: | Natural Gas (NG) | Propane (LP) |
|---|
| Max. (BTU/HR): | 40,000 BTU's | 34,000 BTU's |
|---|
| Min. (BTU/HR): | 21,000 BTU's | 20,000 BTU's |
|---|
|

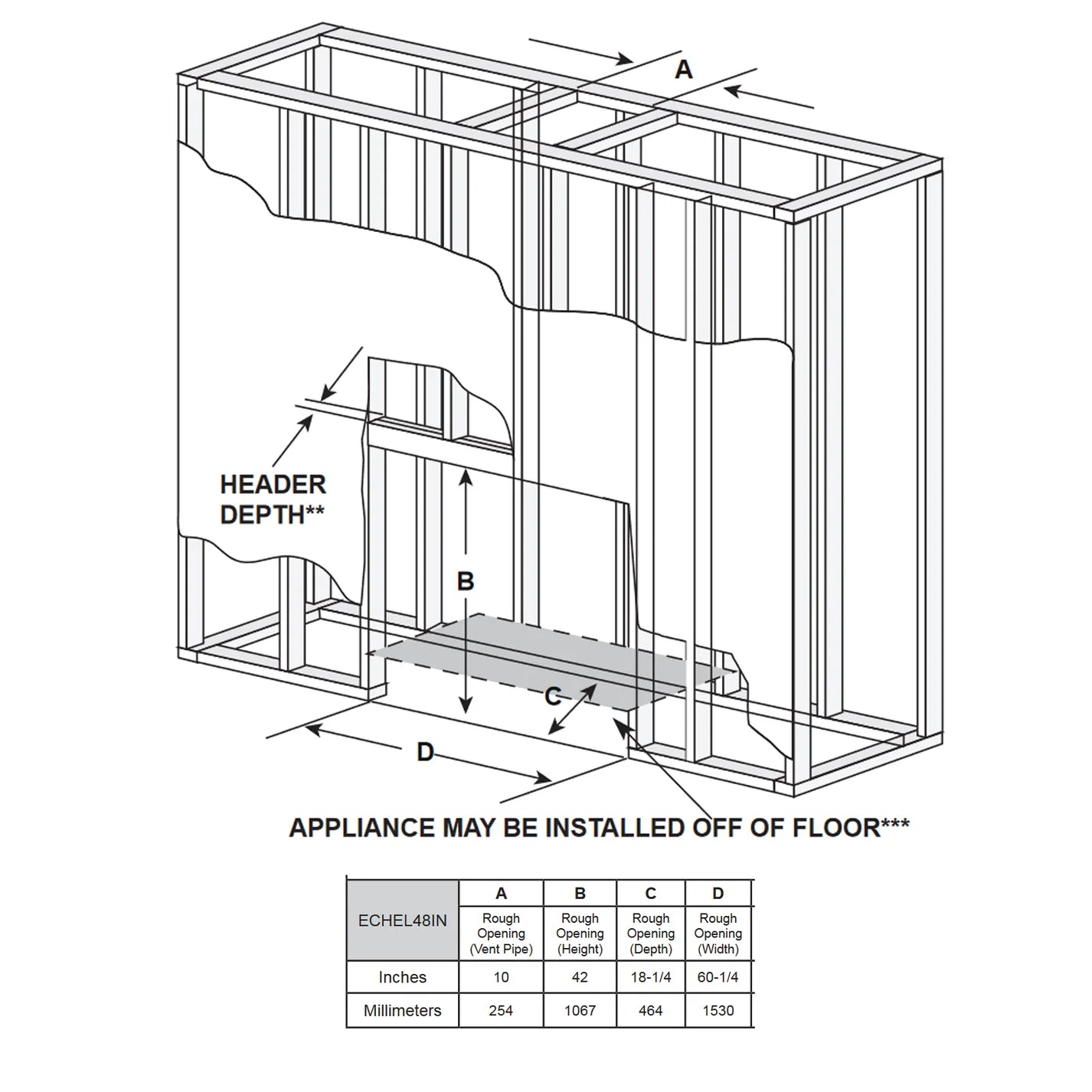

| Height | Width | Depth |
|---|
| 421/2" | 611/2" | 185/8" |
|
| Height | Width | Depth |
|---|
| 42" | 601/4" | 181/4" |
OPTIONS
Majestic Driftwood log set
HHT Natural stones (1 bag) for Heat & Glo, Heatilator, Quadrafire and Majestic Products
Reflective black ceramic glass liner kit (Heat & Glo, Heatilator, Quadrafire)
Majestic Glass, Bronze (1 bag)
Majestic Glass, Diamond (1 bag)
Majestic Glass, Onyx (1 bag)
Majestic Glass, Sapphire (1 bag)
Heat-Zone Kit (includes fan, 20' of 6" round duct, vent, wall adapter and on/off control)
Majestic IntelliFire Touch white wireless wall switch (on/off, cold climate, battery strength indicator)
Ceiling firestop Gas Fireplace - DVP Vent
Wall Firestop Gas Fireplace - DVP Vent
Storm Collar Gas Fireplace - DVP Vent
4" (102mm) length of double wall Gas Fireplace - DVP Vent
6" (152mm) length of double wall Gas Fireplace - DVP Vent
3 - 6" (76-152mm) slip section to slide over pipe (can be cut to length)Gas Fireplace - DVP Vent
24" (610mm) length of double wall Gas Fireplace - DVP Vent
36" (914mm) length of double wall Gas Fireplace - DVP Vent
Horizontal termination cap with long flue, attached slip and wall shield with heat shield, 5-3/8" - 9-3/8" (137 -238mm)Gas Fireplace - DVP Vent
High performance termination cap (short flue with attached slip, and wall shield with heat shield)Gas Fireplace - DVP Vent
Horizontal termination kit (includes DVP-TRAP2, slip section, wall shield and DVP90ST)Gas Fireplace
Horizontal termination kit (includes DVP-TRAP1, slip section, wall shield and DVP90ST)Gas Fireplace
