The Exclusive Echelon II series gas fireplace creates a place to relax and enjoy life. Active flames and interior options give this contemporary fireplace a unique look. Get lost in its fire and the brilliance of glass illuminated by lights. Come home to the single-sided or see-through Echelon II series gas fireplace, and enjoy the entertainment and romance you deserve. Making memories starts with something special.
Showcase the interior with glass illuminated by LED lights. Customize the interior with Reflective Black Glass panels, driftwood logs, natural stone, and glass firebed options. Optional heat distribution systems direct warmth to more areas of the home
- Showcase the interior with glass illuminated by LED lights
- Customize the interior with Reflective Black Glass panels, driftwood logs, natural stone, and glass firebed options
- Standard IntelliFire® touchscreen remote makes operating your fireplace simple, smart, and safe
- Optional Passive Heat enables a TV or heat-sensitive materials to be placed just 12” above fireplace opening without a mantel
Includes:
- 17,500 - 30,000 Btu/Hour Input (NG)
- 15-000 - 27,000 Btu/Hour Input (LP)
- IntelliFire Touch ignition system
- Clear LED dimmable lights
- RC400 remote control
- Battery backup
- Ceramic glass
- Standard with bronze glass media
- If changing media, follow the required number of bags below:
- Crushed Glass: 3 bags of glass
- Natural stones: 2 bags of stone
- Log set & stones: 1 bag of stone
Required to Complete:
Venting Notes:
- Requires 8" DVP pipe. Must have an 18" minimum vertical before attaching a 90-degree elbow to the unit. See venting section of manual.
- Approved for use with PVLP-SLP, PVI-SLP-B, and PVV-SLP with PV-IPI-CK kit and power vent wire harness (order separately). When Power Vent is installed, lights can only be operated on high. See venting section of manual.

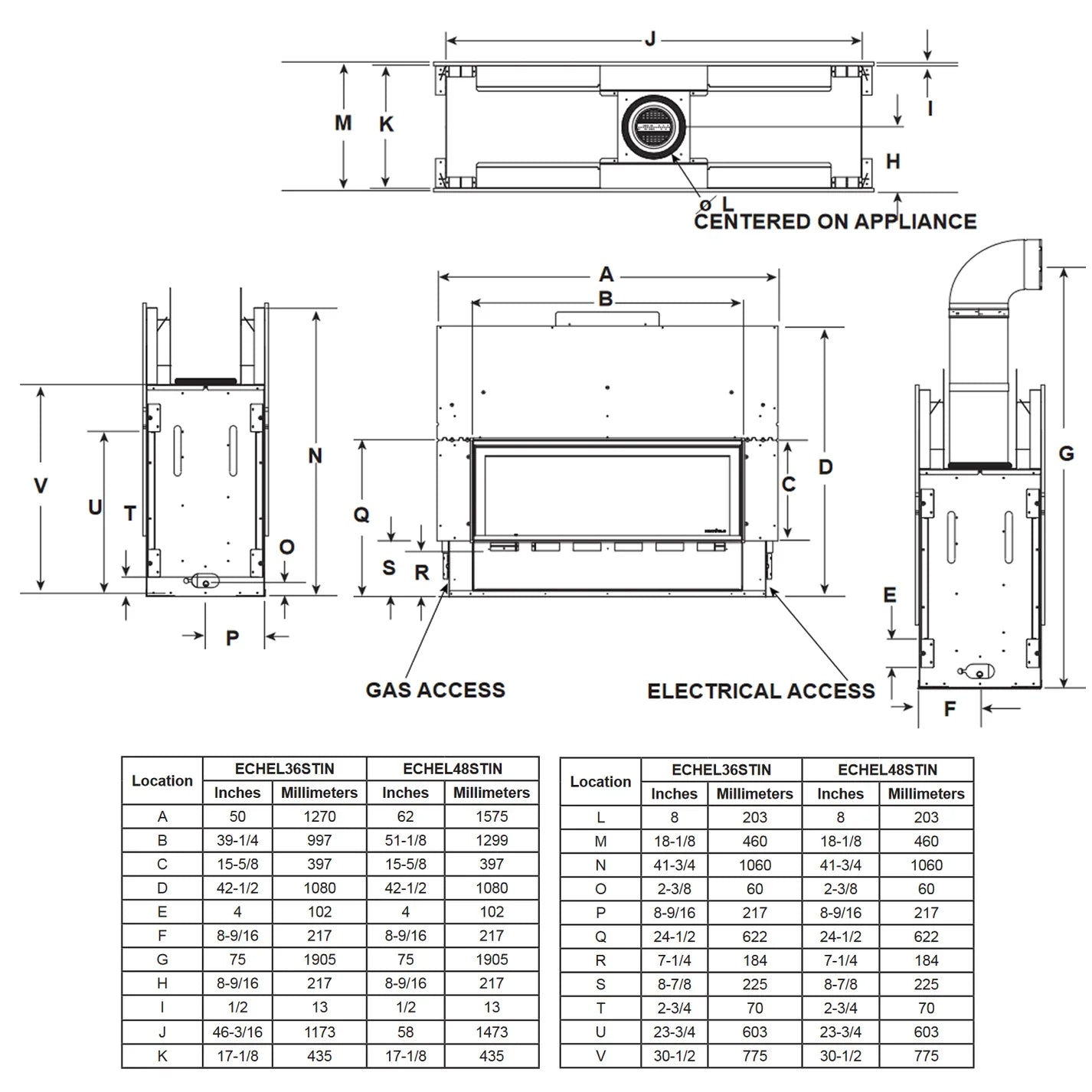

SPECIFICATIONS
ECHEL36STIN-C

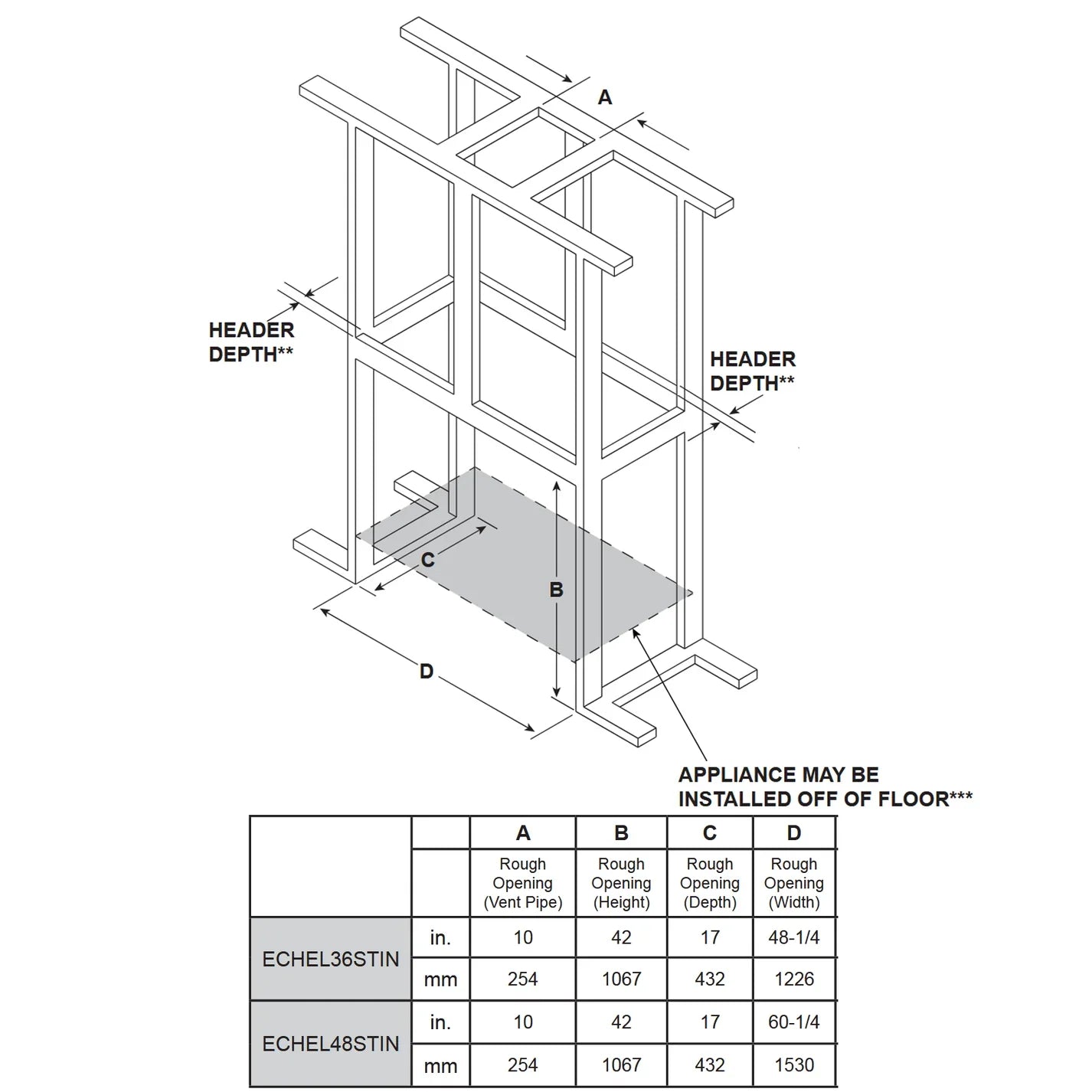

| Appliance Width | 46-3/16" | | Appliance Height | 41-3/4" | | Appliance Depth¹ | 17-1/8" | | Appliance Rear Width | 46-3/16" | | Framing Height | 42" | | Framing Depth | 17" | | Framing Front Width | 48-1/4" | | Framing Back Width | 48-1/4" | | Fuel Type | Natural gas or liquid propane by conversion | | BTU/hr Input | 30,000 (NG); 27,000 (LP) | | Heating Capacity² | Up to 900 sq ft | | Viewing Area | 35-1/2 x 12-1/2" |
|
ACCESSORIES
Clean Face Trim

*Light Baffle Kit - Recommended for use when two CFT fronts are being installed. |
Picture Frame Front
Reflective Black Ceramic Glass Liner Kit
- Customize the interior of your fireplace with this alternative style of decorative lining.
|
Driftwood Log Set
- This finely crafted log set brings an organic touch to your fireplace.
|
